The Project will improve water quality, protect native fish species, and provide reliable water deliveries.

The Measure

North Bay Aqueduct Alternate Intake Project is implemented to improve water quality, protect native species, and to provide reliable water deliveries.

  • Expectations

    Construction of the North Bay Aqueduct Alternate Intake Project (NBA AIP) provides long-term water quality improvement and reliable deliveries to the NBA water contractors.

  • Performance Metrics

    • Project Status

North Bay Aqueduct Alternate Intake Project Progress

  • 2018
    • Project Environmental Impact Report

      No specific completion date for the environmental impact report (EIR).

      Deadline: 2012-07-01

      Status: In Progress - Behind Schedule

Administrative Performance Measure

Tracking the status of the project EIR is a Delta Plan administrative performance.

It is tracked on the Council's Administrative Dashboard.

The North Bay Aqueduct Alternate Intake Project (NBA AIP) will provide long-term water quality improvements and reliable deliveries to the NBA water contractors. The project will support operational flexibility to reduce effects on listed species and critical habitat in Barker Slough (existing intake location). The project includes constructing a new pumping station on the Sacramento River south of West Sacramento and a pipeline to connect to the existing NBA—providing a second source of drinking water supply.

The current North Bay Aqueduct intake is located in Barker Slough (North West Delta in Solano County) where it is strongly affected by water quality in the local watershed, has the highest average organic carbon concentrations of any Delta municipal water supply intake, and is located in high-quality habitat for listed native fish species.

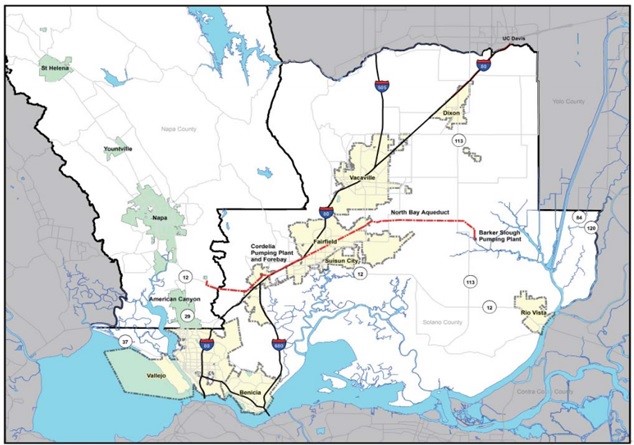

Map showing the North Bay Aqueduct Location

The North Bay Aqueduct Alternate Intake Project map. The NBA AIP will serve: Solano County: Benicia, Dixon, Fairfield, Rio Vista, Suisun City, Vacaville, and Vallejo. Napa County: American Canyon, Calistoga, and Napa. The map source.

Disinfection Byproducts and Organic Carbon

Treatment of public water supplies is necessary to prevent disease caused by pathogenic organisms. However, bromide and organic carbon in municipal water supplies contribute to the formation of harmful disinfection byproducts when water is treated for domestic use. The disinfection products of concern in tap water, such as trihalomethanes, haloacetic acids, and bromates, are carcinogens and are subject to stringent public health standards. Treatment of Delta water is challenging because of the elevated levels of both bromide and organic carbon.

Each chapter of the Delta plan includes strategies to achieve the goals of the plan. These strategies are general guidance on achieving the objective laid out in the plan and in the Delta Reform Act of 2009. Associated with these strategies are recommendations. The recommendations describe more specific and implementable actions to support the achievement of Delta Plan strategies. Strategies and recommendations may also have associated performance measures. Delta Plan performance measures track progress in achieving desired outcomes for the Delta Plan. Below are the strategies and recommendations associated with this performance measure.

Delta Plan Strategy

  • Improve drinking water quality

Delta Plan Recommendations

  • Complete central valley drinking water policy
  • Complete North Bay Aqueduct Alternative Intake project
  • Protect groundwater beneficial uses
  • Participation in CV-SALTS
Metric
  • Project Status
Baseline
  • The notice of preparation for the NBA AIP EIR was published on November 24, 2009
Target
  • Begin construction by end of 2019

Project development and timeline data are retrieved from Department of Water Resources NBA project staff and reports.
